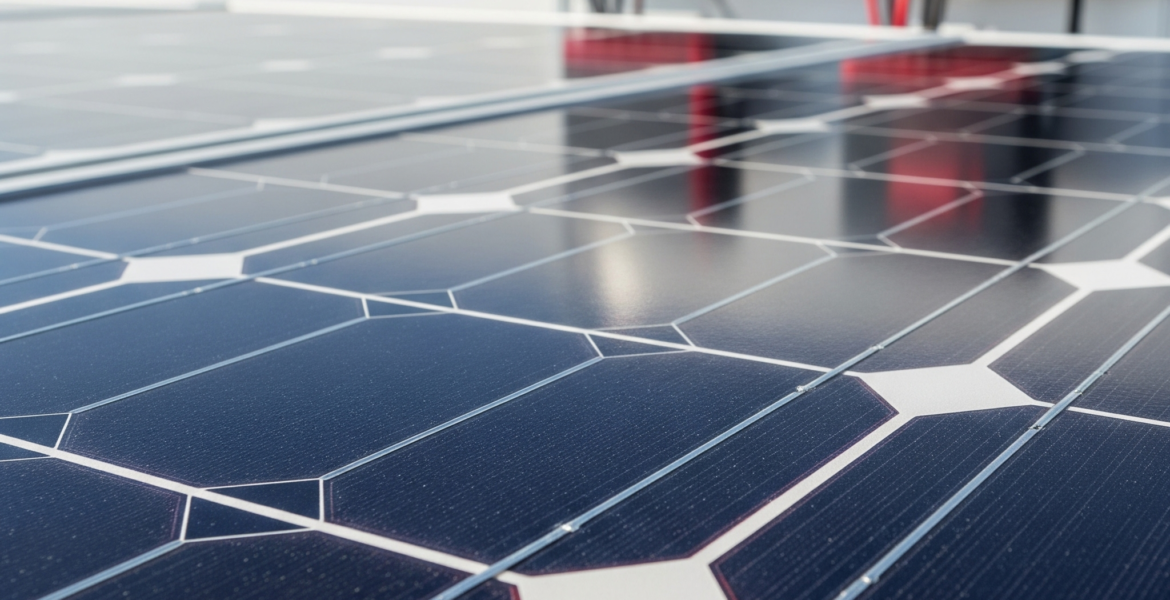

Close-up of monocrystalline solar photovoltaic cells illustrating solar energy fundamentals

Solar Energy Fundamentals

This entry is in the series Renewable Energy

Renewable Energy

Diagram of a geothermal power plant cycle extracting heat from the earth.

Geothermal Energy

Conceptual illustration representing the economics and policy of renewable energy.

Policy & Economics of Renewable Energy

Contrast between traditional hydropower dam and modern marine tidal energy turbine.

Hydropower & Marine Energy

Digital representation of a Smart Grid network with IoT data overlays.

Smart Grids & Digital Energy

Rural home in a developing country powered by off-grid solar energy system.

Renewable Energy in Developing Countries

Close-up of monocrystalline solar photovoltaic cells illustrating solar energy fundamentals

Solar Energy Fundamentals

Looking up at a utility-scale wind turbine rotor, illustrating wind energy aerodynamics

Wind Energy Fundamentals

A landscape showcasing diverse renewable energy sources including solar panels and wind turbines representing the global energy transition.

Introduction to Renewable Energy

Grid-scale lithium-ion battery energy storage system (BESS) integrated with a solar farm.

Energy Storage & Batteries

Anaerobic digestion plant converting biomass waste into renewable bioenergy.

Biomass & Bioenergy

Corporate boardroom overlooking a renewable energy wind farm, representing sustainable business strategy

Corporate Sustainability & Renewable Adoption

Futuristic renewable energy landscape featuring hydrogen plants and floating solar arrays.

Future Trends & Innovations

Introduction

Solar energy has evolved from a niche space-exploration technology to the cheapest source of electricity in history. But for engineers and project managers, understanding “solar” goes beyond simply installing panels. It requires a grasp of Photovoltaic (PV) physics, irradiance data, and the balance of system (BoS) components. In this post, we unpack the technical fundamentals of Solar PV.

Purpose: Harvesting the Sun

Solar PV converts sunlight directly into electricity using the photovoltaic effect. The goal is simple: maximize the conversion of solar irradiance (W/m²) into usable electrical power (kWh), while minimizing losses due to heat, resistance, and shading.

Inputs: The Physics of Efficiency

  • Irradiance: The power of solar radiation per unit area. Standard Test Conditions (STC) assume 1000 W/m², but real-world engineering must account for local DNI (Direct Normal Irradiance) and GHI (Global Horizontal Irradiance).
  • The Semiconductor: Most panels use silicon. When photons hit the silicon cell, they knock electrons loose, creating a current.
  • Temperature Coefficient: Ironically, solar panels hate heat. As temperature rises, voltage drops, reducing efficiency. High-quality panels have a lower temperature coefficient (e.g., -0.3%/°C).

Process Steps: Designing a Solar Solution

  1. Site Assessment: Using tools like PVSyst or Helioscope to model shading and sun path.
  2. Component Selection: Choosing between Monocrystalline (higher efficiency, higher cost) vs. Polycrystalline (lower cost, larger footprint).
  3. Inverter Configuration: Matching string voltage to the inverter’s MPPT (Maximum Power Point Tracking) window to ensure optimal energy harvest.
  4. Racking & Mounting: Engineering the structural load to withstand wind uplift and snow loads.

Emerging Technologies

  • Bifacial Panels: These capture reflected light (albedo) from the ground on the rear side of the panel, boosting output by 5-30%.
  • Perovskites: A new class of materials that promises higher efficiency layers that can be printed or painted, potentially disrupting the silicon market.

Common Pitfalls

  • Ignoring Soiling: Dust and bird droppings can cause “hot spots” that damage cells and reduce string output.
  • Undersizing Inverters: While some “clipping” (overloading the inverter) is acceptable to maximize early morning/late afternoon production, excessive DC/AC ratios reduce equipment life.

Example: The Utility-Scale Shift

Consider a 100MW solar farm in a desert region. By switching from fixed-tilt racking to Single-Axis Trackers (which follow the sun east-to-west), the project increased its energy yield by 25%, significantly lowering the Levelized Cost of Energy (LCOE) despite the higher mechanical CAPEX.
